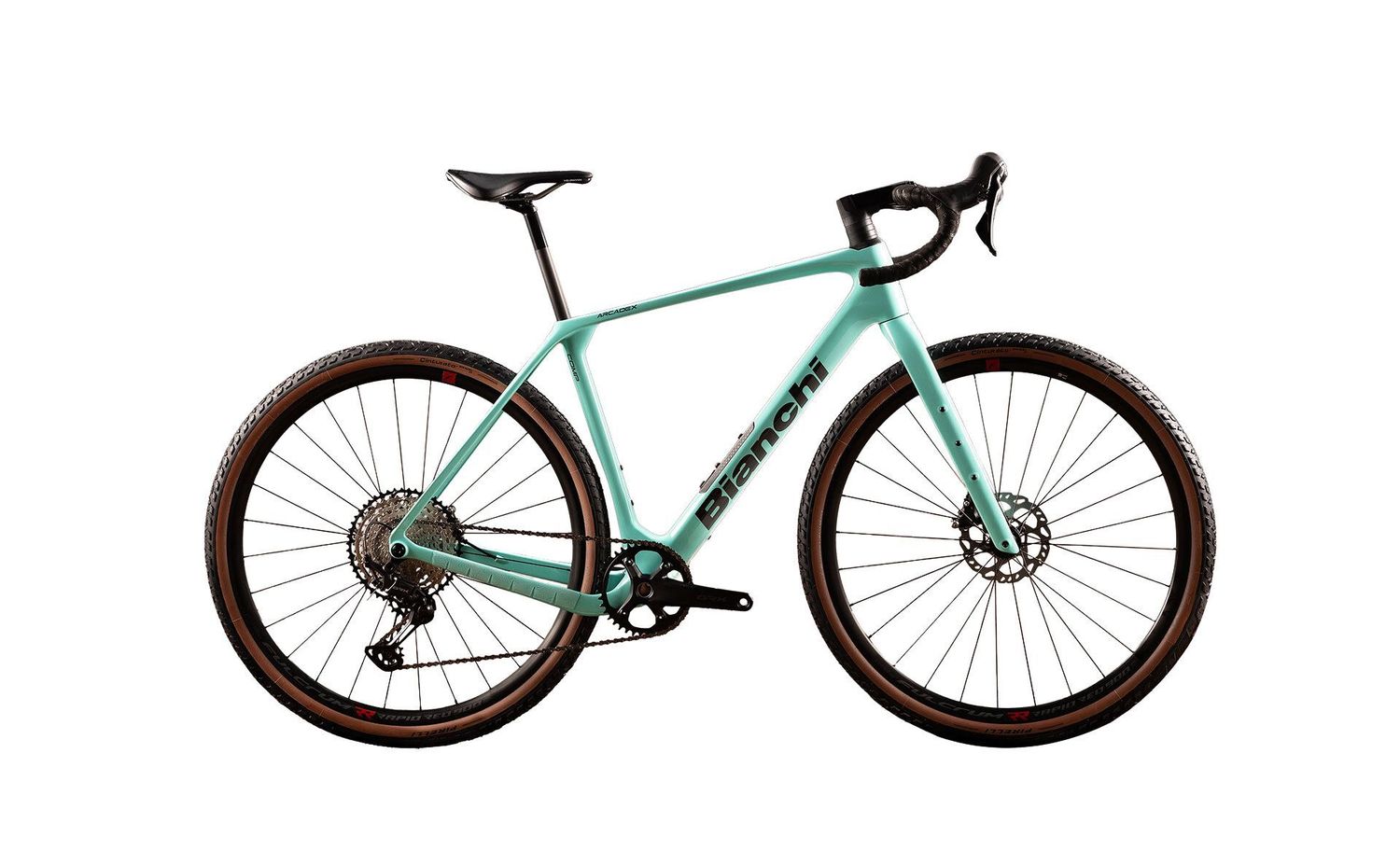

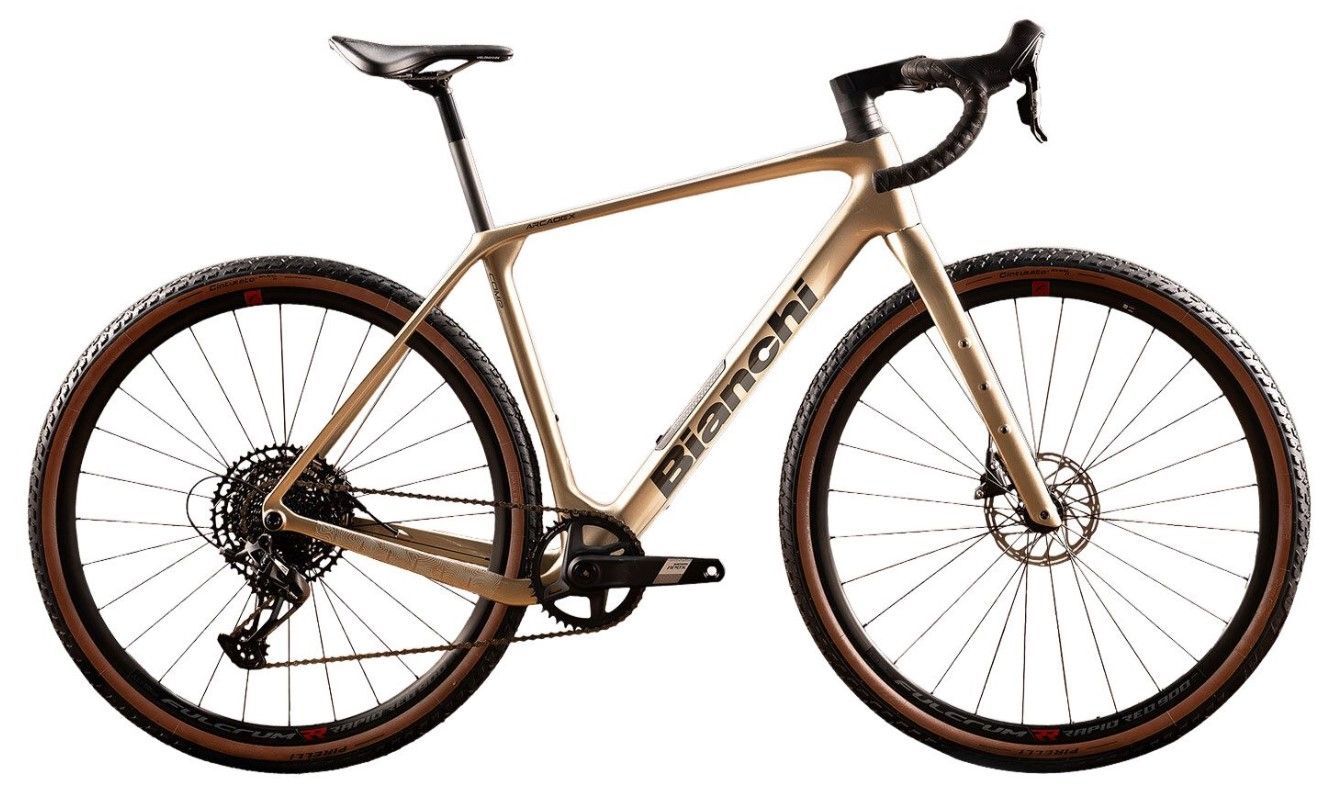

Bianchi Arcadex Comp GRX 610/822

BIANCHI ARCADEX COMP GRX 610/822

The RRP for this bike is £2649. If you have seen a better price elsewhere or online, please get in touch using the Contact Form below as we aim to price match where possible (including when using Cycle to Work schemes). If you don't see your size or colour option, please get in touch as we may be able to order it in for you.

Contact Us | A.C.S Prestwick Ltd (acsprestwick.co.uk)

• FRAMESET

  1. FRAME

     Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Bracket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Non Compatible Rear Derailleur: SRAM UDH Hanger type

  2. FORK

     Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fibre Composite

  3. HEADSET

     Bianchi Custom Acros ICR (Internal Cable Routing) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compression Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

• DRIVETRAIN

  1. SHIFTERS

     Shimano GRX 610 ST/BL-RX610

  2. REAR DERAILLEUR

     Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T

  3. CRANKSET

     Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

  4. BOTTOM BRACKET

     Shimano SM-BB72-41B, press fit

  5. CHAIN

     Shimano CN-M7100

  6. CASSETTE

     Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline

• BRAKES

  1. BRAKES

     Shimano Hydraulic Brake, BR-RX400

  2. ROTOR

     Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• WHEELS

  1. WHEELS

     Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminium Alloy Rim Height: 24 mm Inner Width Channel: 22 mm

  2. TIRE

     Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• COCKPIT

  1. STEM

     Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

  2. HANDLEBAR

     Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

  3. GRIPS

     Bianchi Hexagon tape 2.5mm thickness, Full black

• SADDLE

  1. SEATPOST

     Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)

  2. SADDLE

     Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel length: 250mm width: 149mm
