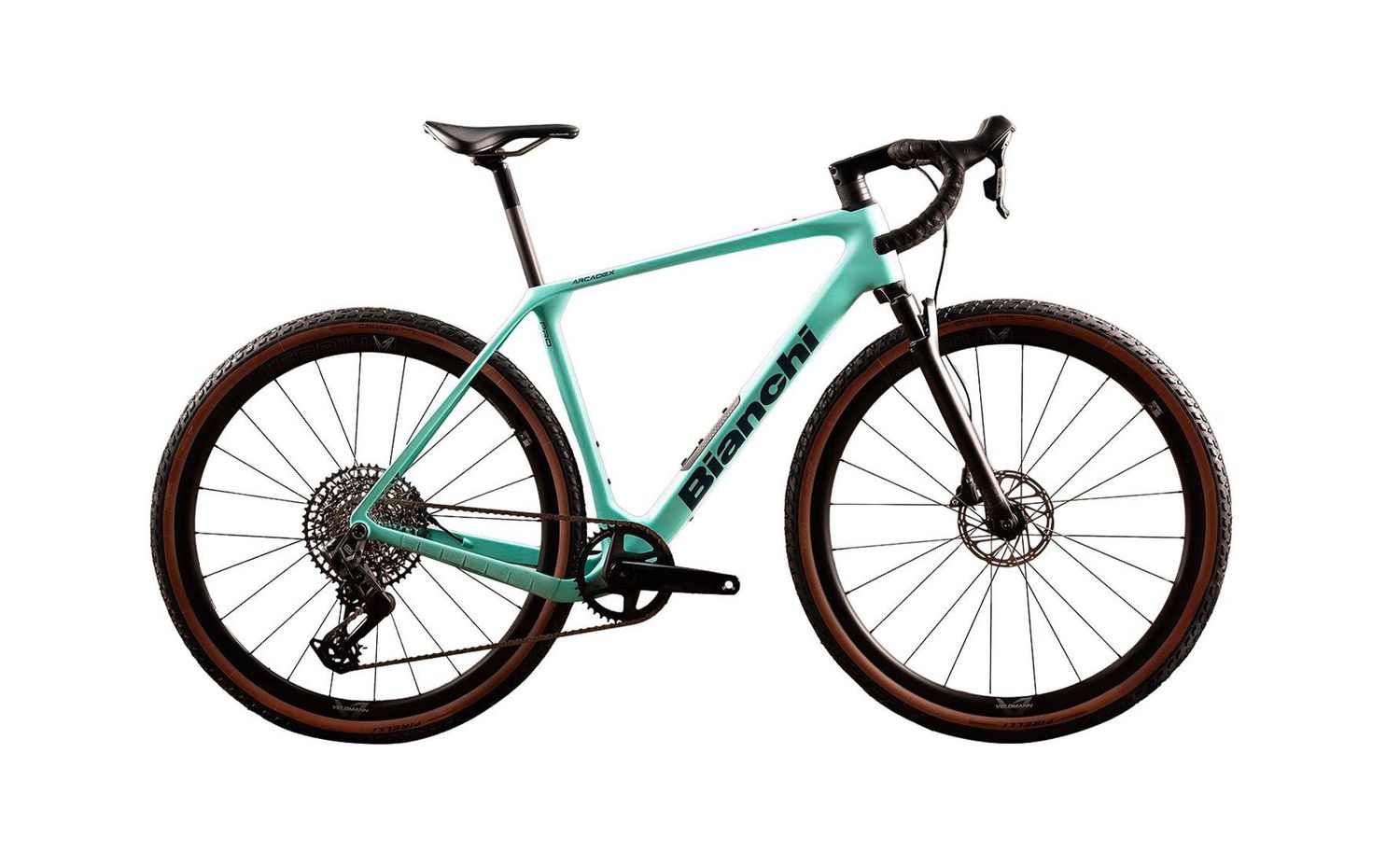

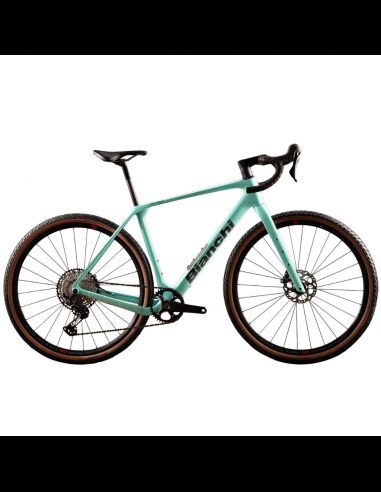

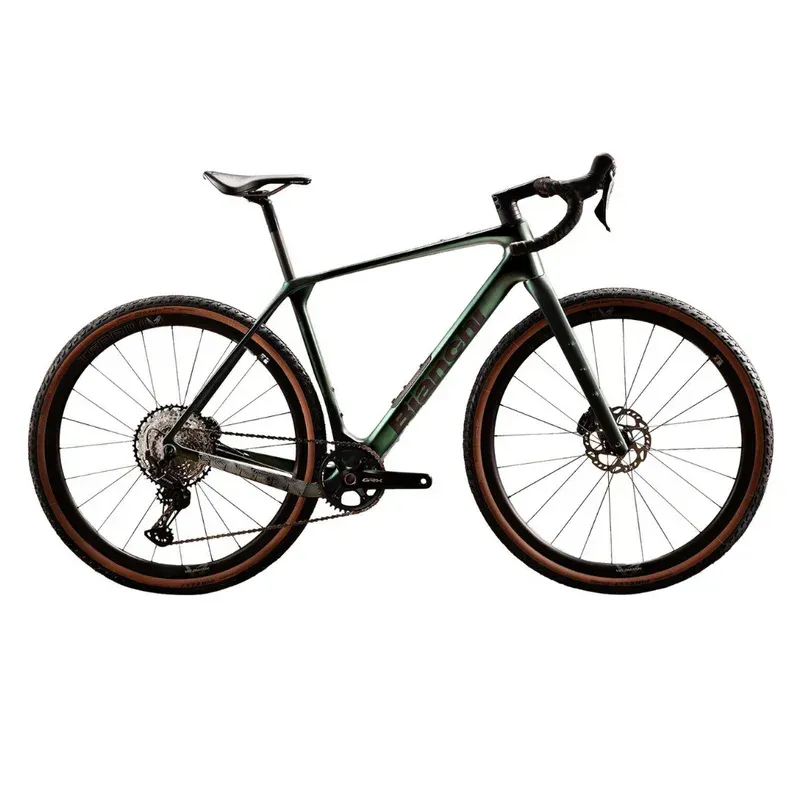

Bianchi Arcadex Pro GRX 820/822

BIANCHI ARCADEX PRO GRX 820/822

• Frame

  Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Bracket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 38T-44T Minimum Chainline: 45.5 mm Tyre Clearance: ETRTO 622-50mm SeatPost O.D: Ø27.2 mm Material: Epoxy - SM Carbon Fiber Composite

• Fork

  Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - SM Carbon Fiber Composite

• Headset

  Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

• Shifters

  Shimano GRX 820 ST/BL-RX820

• Freewheel

  Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline

• RearDerailleur

  Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T

• Crankset

  Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

• BB

  Shimano SM-BB72-41B, press fit

• Chain

  Shimano CN-M7100

• Brakes

  Shimano Hydraulic Brake, BR-RX820

• Wheels

  Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm

• Tire

  Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• Stem

  Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8" (28.6mm) HB interface Diameter: 1-1/4" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

• Handlebar

  Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

• TapeHandlebar

  Bianchi Hexagon tape 2.5mm thickness, Full black

• Seatpost

  Velomann Carbon UDSeatPost O.D: Ø27.2 mmSeatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

• Saddle

  Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2

• Rotor

  Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
