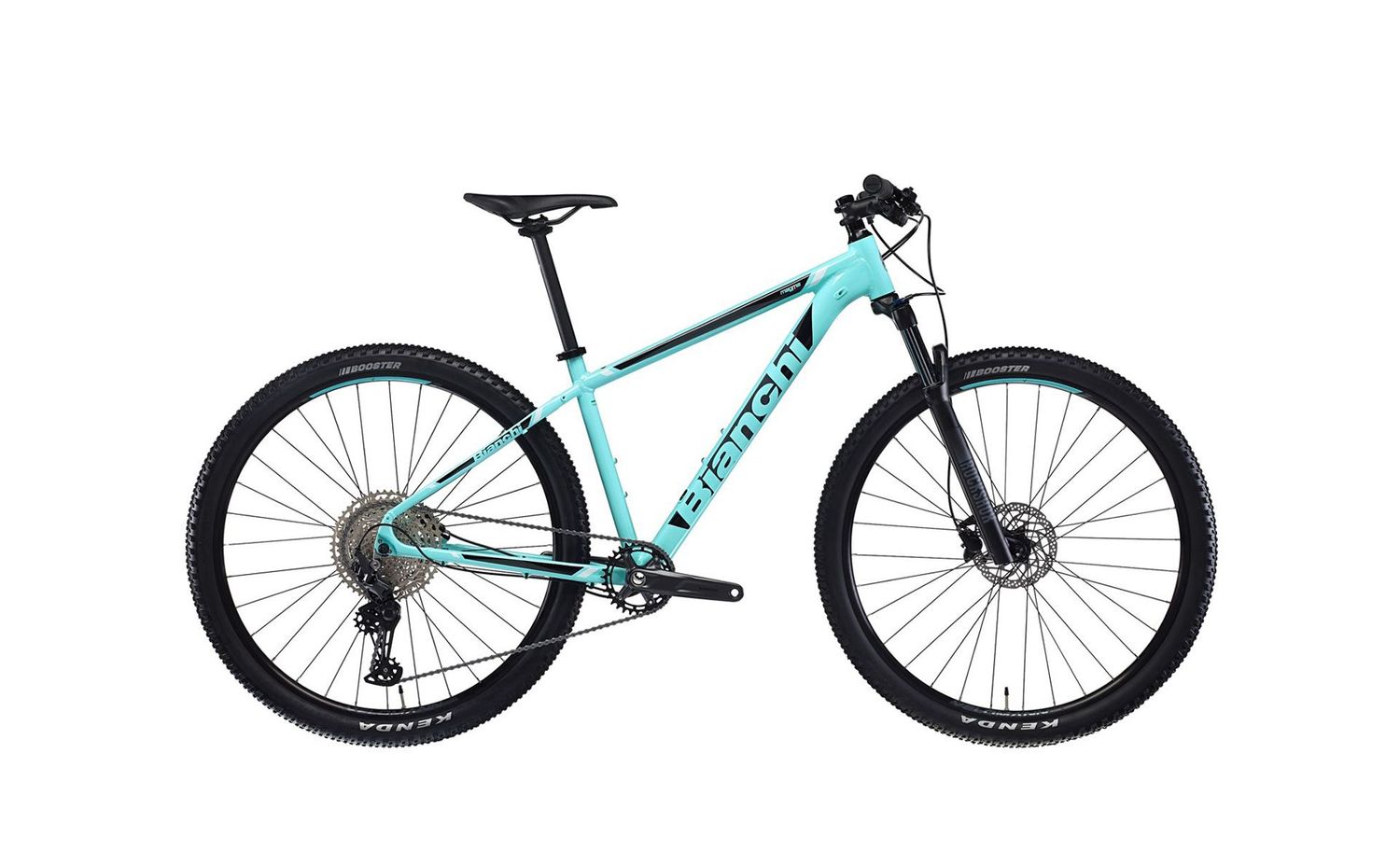

Bianchi Magma 9.0

BIANCHI MAGMA 9.0

• Model

  Magma

• Frame

  Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"

• Fork

  Rock Shox Judy TK 29" 100mm w/Remote Lockout,1,1/8" steel HT, alloy crown, coil spring w/pre-load adjust, steel 30mm stanchions, magnesium lowers w/PM 160mm disc mount, 9mm QR

• Headset

  Fsa TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap

• Shifters

  Deore SL-M5100-R 1x11, clamp band

• RearDerailleur

  FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

• FrontDerailleur

  Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

• Crankset

  Shimano FC-M5100-1, 32T, crank length: 170mm-15", 175mm-17/21"

• BB

  included in the crankset

• Chain

  Kmc X11 EPT finish, 11sp

• Sprocket

  Shimano CS-M5100-11, 11sp, 11-13-15-18-21-24-28-33-39-45-51T

• Brakes

  Shimano BR-MT200, resin pad

• Wheels

  VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole

• RearHub

  FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

• FrontHub

  Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

• Tire

  Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, ETRTO 56-622

• Stem

  Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"

• Handlebar

  Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep

• Grips

  T-one T-GP48B, one piece grip, TPR material, 130mm

• Seatpost

  Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm

• Saddle

  Velomann, steel rails, PVC soft touch cover, 140mm width

• Rotor

  Shimano SM-RT10, 160mm front & rear, Center Lock, for resin pad only
