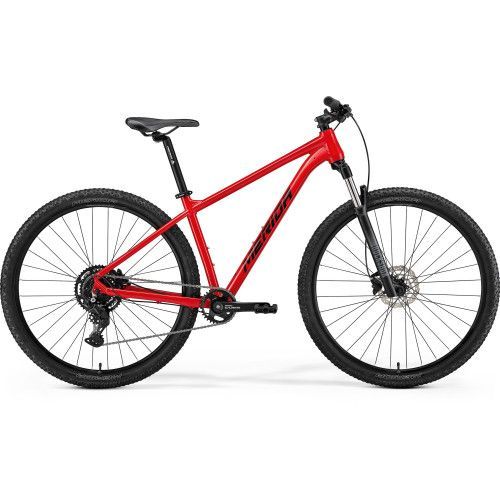

Merida Big Nine 80 - Red

Merida Big Nine 80 - Red

Store / Brands / Merida
£850.00
Price incl. VAT (20%) £141.67
Size
In stock: 1 available
Product Details
Brand: Merida

MERIDA BIG NINE 80 RED

Specification

Frame
  • TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
Fork
  • RockShox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset; Max tyre size 29" x 2.25"
Gears
  • 9
Shifters
  • Shimano Cues U4000-9
Rear Derailleur
  • Shimano CUES U4000-9; GS
Bottom Bracket
  • Shimano BB-UN101 73-123
Chain
  • KMC xGlide
Chainset
  • Shimano CUES U4000; 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
Cassette
  • Shimano CS-LG300-9; 11-46 teeth; 9 speed
Brake Lever
  • Shimano MT200
Front Brake
  • Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake
  • Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip
  • Merida EC
Handlebar
  • Merida CC; aluminium; 690mm wide; 15mm rise
Stem
  • Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
Head Set
  • Merida M2345
Pedal
  • VP VPE-891
Saddle
  • Merida Sport comfort
Seat Post
  • Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
Wheel Size
  • 29"
Rims
  • Merida CC; 17mm inner rim width; aluminium
Spokes
  • Black steel
Front Hub
  • Shimano HB-TX505; 100 x 9mm; 32 spoke; Centerlock
Rear Hub
  • Shimano FH-TX505; 135 x 9mm; 32 spoke; Centerlock
Front Tyre
  • Merida K1080; 29" x 2.2"; wire bead
Rear Tyre
  • Merida K1080; 29" x 2.2"; wire bead
Colour
  • Dark Red/Black
Season
  • 2025
