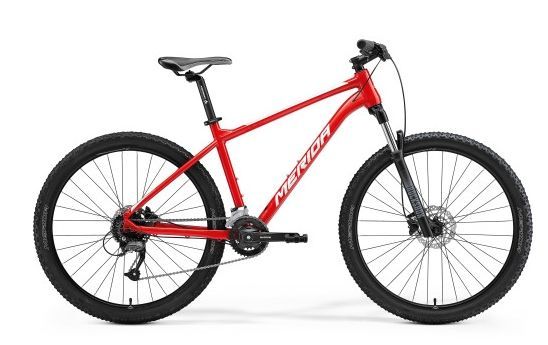

Merida Big Seven 60 - Red/White

Merida Big Seven 60 - Red/White

Store / Brands / Merida
£800.00
Price incl. VAT (20%) £133.33
Size
In stock: 1 available
Product Details
Brand: Merida

MERIDA BIG SEVEN 60 RED/WHITE

Frame

  • TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25"
Fork
  • RockShox Judy TK; Coil; 100mm travel; Lockout; 42mm fork offset. Max. tyre size: 27.5" x 2.25"
Gears
  • 18
Shifters
  • microSHIFT SL-M850
Front Derailleur
  • Shimano FD-M2020-TS
Rear Derailleur
  • Shimano RD-M370
Bottom Bracket
  • Shimano BB-UN100
Chain
  • KMC M99
Chainset
  • Shimano MT101-2; 36-22 tooth chainset. Crank length: 170mm (XS,S), 175mm (M)
Cassette
  • Shimano CS-HG200; 11-32 teeth; 9 speed
Brake Lever
  • Power DS-100HT
Front Brake
  • Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake
  • Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip
  • Merida EC
Handlebar
  • Merida CC; aluminium; 690mm wide; 15mm rise
Stem
  • Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (XS/S), 80mm (M), 90mm (L)
Head Set
  • Merida M2345
Pedal
  • VP Components, VPE-891
Saddle
  • Merida Sport comfort
Seat Post
  • Merida Comp CC; aluminium; 30.9mm diameter; in-line
Wheel Size
  • 27.5"
Rims
  • Merida CC; 17mm inner rim width; aluminium
Spokes
  • Black steel
Front Hub
  • Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub
  • Shimano TX505; 135x9mm; 32 spokes; Center lock
Front Tyre
  • Merida K1080; 27.5" x 2.2"; wire bead
Rear Tyre
  • Merida K1080; 27.5" x 2.2"; wire bead
Colour
  • Red/White
Season
  • 2023
