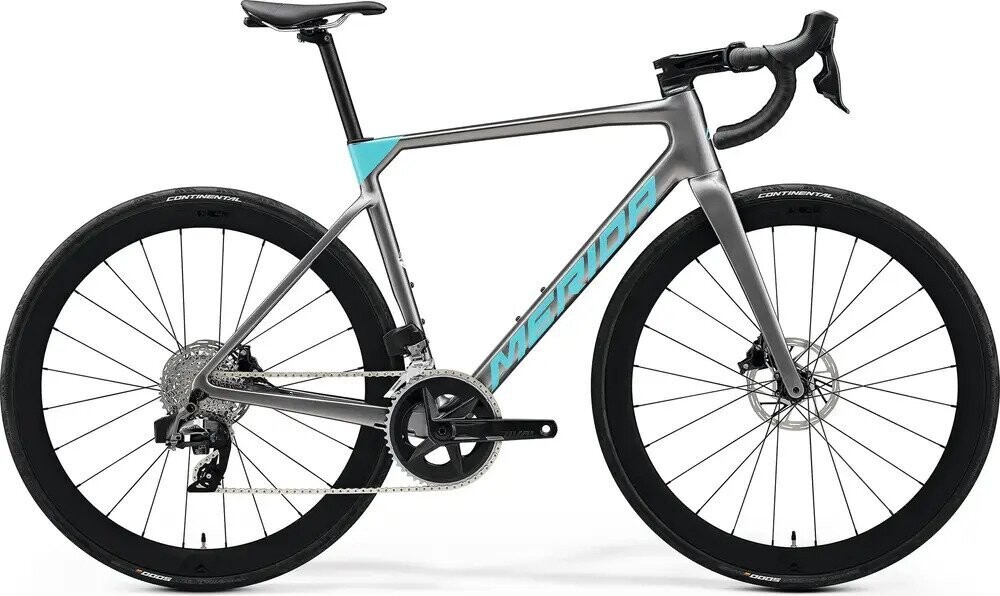

MERIDA SCULTURA 7000
If you don't see your size or colour option, please get in touch using the Contact Form below as we may be able to order it in for you.
Contact Us | A.C.S Prestwick Ltd (acsprestwick.co.uk)
Specification
Frame | SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5, MUK 38 (Shimano direct mount)/ MUK 39 Hanger BB Standard: BB86/BB92, 86.5mm, press-fit |
---|---|
Fork | SCULTURA CF3 Disc, material: carbon, 700x30C max. wheelsize |
Bottom Bracket | SRAM Pressfit Dub, Presfit 86.5 |
Headset | FSA ACR |
Stem | FSA SMR ACR, material: aluminium, -6° stem angle, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
Handlebar | MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL) |
Saddle | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
Seatpost | MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex |
Rear Derailleur | SRAM Rival eTap AXS, SS |
---|---|
Front Derailleur | SRAM Rival eTap AXS |
Crank | SRAM Rival eTap AXS, 48-35 teeth, Power Meter, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
Power Meter | SRAM Rival eTap AXS, 48-35 teeth, Power Meter, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
Shifters | SRAM Rival eTAP AXS HRD |
Cassette | CS XG 1250 D1, 10-36 teeth, 12 speed |
Chain | SRAM Rival 12s |
Brakes | SRAM ED Rival eTap AXS, Hydraulic Disc |
Brake Levers | SRAM ED Rival eTap AXS |
Rims | MERIDA TEAM SL45, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 45mm height, Centerlock, material: carbon |
---|---|
Front Hub | MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
Rear Hub | MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
Tires | Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready |
Disk Rotors | SRAM DB Rotor Centerlock Paceline, 160mm |
