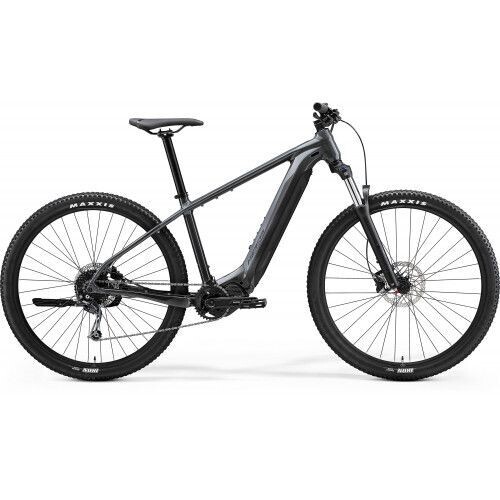

Merida eBig Nine 400 - Grey/Black
MERIDA EBIG NINE 400 GREY/BLACK
Hardtail eMTB with Integrated 630Wh battery powering 85Nm Shimano Steps EP8 motor. Equipped with Shimano Deore 10 speed and Shimano hydraulic disc brakes.
The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. You ride to work in the morning but fancy a little off road detour on the way home? No problem – that's what these bikes are made for! Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding. The eBig Nine 400 is the cheapest Merida eBike to use Shimano's EP8 85Nm motor and 630w battery. Many technical features and much of the thinking that went into the award winning eOne-Sixty have been incorporated to deliver a stylish and well thought through hardtail. The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.
SPECIFICATION
- Lite III - Hydroformed 6066 aluminium, intergrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
- Shimano Steps EP8; 85Nm
- Shimano E8036; 630Wh internal battery
- 630 Wh
- Shimano SC-E5003A
- Shimano EC-E6002; 2A Charging current
- Merida Power Cap button
- Shimano SC-E5003A
- Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.4"
- 10
- Shimano Deore M4100
- Shimano Deore RDM5120; SGS
- Part of Shimano Steps motor
- KMC e10s
- Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank with Mr. Control CH-E8 mini chain device
- Shimano M4100; 11-46 teeth; 10 speed
- Shimano MT-200
- Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor
- Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor
- Merida Expert EC
- Merida Expert eTR; 760mm wide; 20mm rise
- Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
- Merida-8157
- VP Components, VPE-537
- Merida Comp SL; V-mount
- Merida Expert CC; aluminium; 34.9mm diameter; in-line
- 29"
- Merida Comp CC; 20mm inner rim width; Aluminium
- Black stainless
- Shimano MT400-B; 110x15mm; 32 spokes; Center lock
- Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
- Maxxis Ikon; 29" x 2.2"; kevlar bead
- Maxxis Ikon 29" x 2.2"; kevlar bead, folding
- Grey / Black
- 2022/23
- CG-119PG front light
- CG-404RG rear light
- Shimano Satellite charging port; EW-CP100
